美標D型卸扣分為G210和G2150兩種型號，主要區別在于橫栓上，一種是帶螺母的，一種是不帶的。符合CE認證，采用模鍛的加工工藝。該款類型卸扣主要功能以連接性為主，而弓形卸扣主要以吊裝功能為主，針對這···

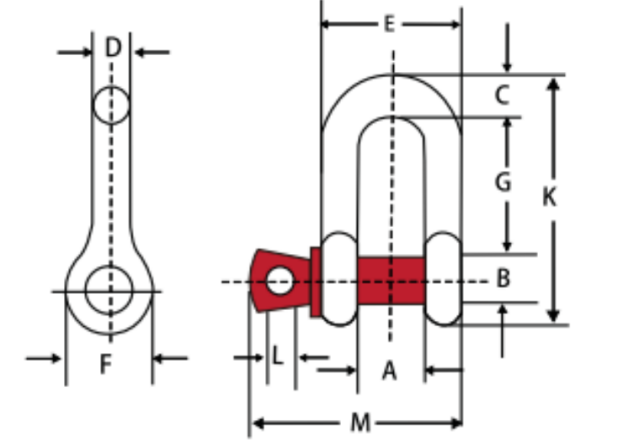

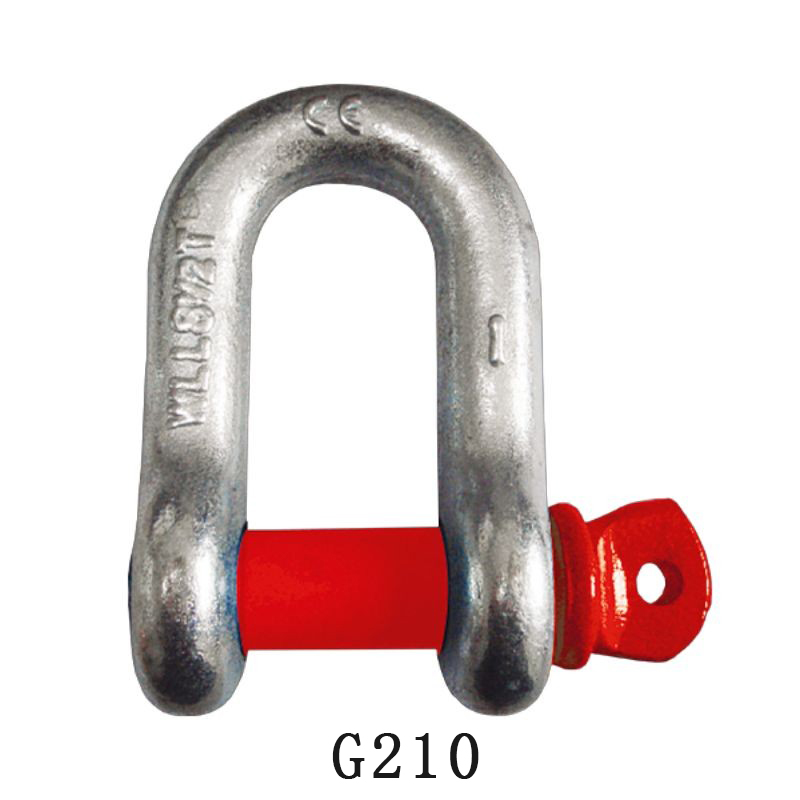

| 美標D型卸扣（G210）(American standard shackles) | ||||||||||||||
| 型號Size (in) | 額定載荷 W.L.L (t) | 重量 Weight (KG) | 尺寸MM | 誤差 | ||||||||||
| A mm | Bmm | Cmm | Dmm | Emm | Fmm | Gmm | Kmm | Lmm | Mmm | Gmm | Amm | |||
| 1/4 | 1/2 | 0.05 | 11.94 | 7.87 | 6.35 | 6.35 | 24.64 | 15.75 | 24.64 | 40.39 | 4.83 | 36.32 | 1.52 | 1.524 |
| 43967 | 43894 | 0.08 | 13.46 | 9.65 | 7.87 | 7.87 | 29.21 | 19.05 | 27.18 | 48.51 | 5.59 | 43.43 | 1.52 | 1.524 |
| 3/8 | 1 | 0.13 | 16.76 | 11.18 | 9.65 | 9.65 | 36.07 | 23.37 | 32.51 | 58.67 | 6.35 | 51.31 | 3.30 | 1.524 |
| 0.4375 | 36893 | 0.20 | 19.05 | 12.70 | 11.18 | 11.18 | 41.40 | 26.92 | 37.59 | 67.82 | 7.87 | 60.20 | 3.30 | 1.524 |
| 1/2 | 2 | 0.27 | 20.57 | 16.00 | 12.70 | 12.70 | 45.97 | 29.97 | 42.16 | 76.96 | 9.65 | 68.33 | 3.30 | 1.524 |
| 43959 | 37625 | 0.57 | 26.92 | 19.05 | 16.00 | 16.00 | 58.93 | 38.10 | 51.82 | 95.50 | 11.18 | 84.84 | 3.30 | 1.524 |
| 3/4 | 4-3/4 | 1.19 | 31.75 | 22.35 | 20.57 | 19.05 | 69.85 | 45.97 | 60.96 | 115.06 | 12.70 | 100.84 | 6.35 | 1.524 |
| 44020 | 38719 | 1.43 | 36.58 | 25.40 | 24.64 | 22.35 | 81.28 | 53.34 | 72.64 | 135.38 | 12.70 | 114.30 | 6.35 | 1.524 |
| 1 | 8-1/2 | 2.15 | 42.93 | 28.70 | 25.40 | 25.40 | 93.73 | 60.45 | 82.30 | 150.88 | 14.22 | 130.30 | 6.35 | 1.524 |
| 36899 | 39815 | 3.06 | 45.97 | 31.75 | 31.75 | 28.70 | 103.38 | 68.33 | 91.69 | 172.21 | 16.00 | 145.03 | 6.35 | 3.302 |
| 1-1/4 | 12 | 4.11 | 51.56 | 35.05 | 35.05 | 31.75 | 115.06 | 76.20 | 100.84 | 190.50 | 17.53 | 158.75 | 6.35 | 3.302 |
| 1-3/8 | 13-1/2 | 5.28 | 57.15 | 38.10 | 38.10 | 35.05 | 127.25 | 84.07 | 112.52 | 210.31 | 19.05 | 173.48 | 6.35 | 3.302 |
| 1-1/2 | 17 | 7.23 | 60.45 | 41.40 | 41.15 | 38.10 | 136.65 | 91.95 | 122.94 | 229.87 | 20.57 | 186.18 | 6.35 | 3.302 |
| 36954 | 25 | 12.13 | 73.15 | 50.80 | 53.85 | 44.45 | 162.05 | 106.43 | 146.81 | 278.64 | 25.40 | 230.12 | 6.35 | 3.302 |
| 2 | 35 | 19.19 | 82.55 | 57.15 | 59.94 | 53.34 | 184.15 | 127.00 | 171.96 | 323.60 | 30.99 | 262.89 | 6.35 | 3.302 |
| 37258 | 55 | 32.55 | 104.65 | 69.85 | 66.80 | 66.80 | 238.25 | 144.27 | 204.98 | 377.19 | 35.05 | 330.20 | 6.35 | 6.35 |

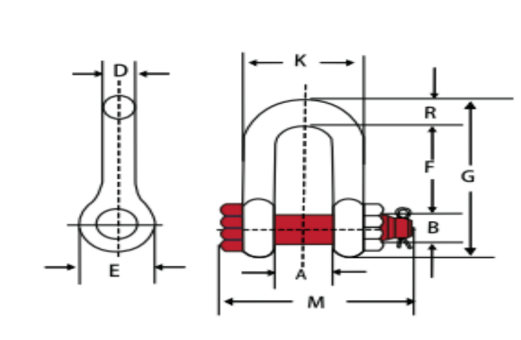

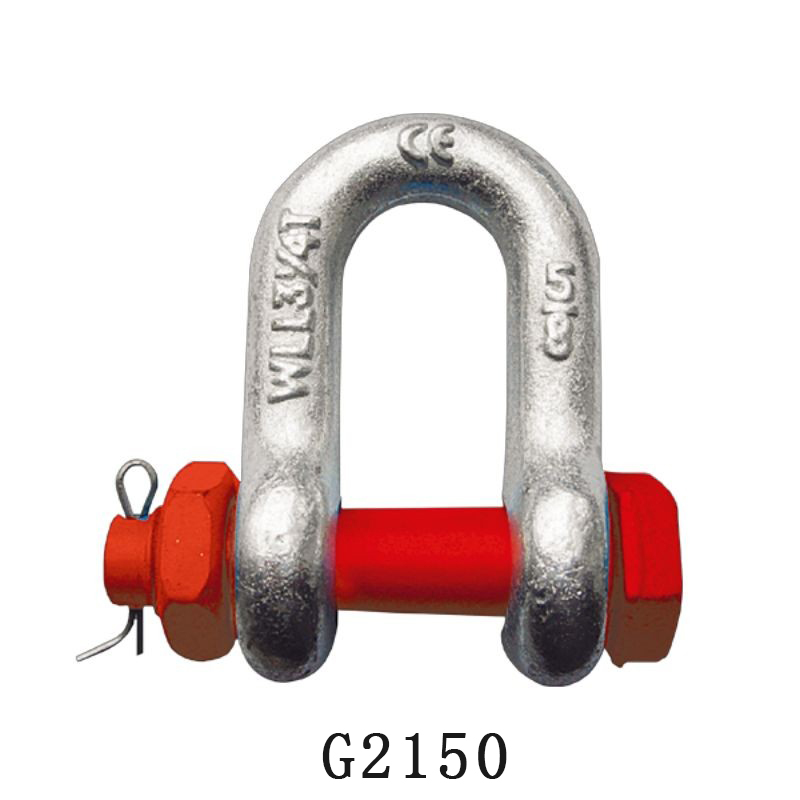

| 美標D型卸扣(G2150)(American standard shackles) | |||||||||||||
| 型號 Size (in) | 額定載荷 W.L.L(t) | 重量 Weight KG | 尺寸 | 誤差 | |||||||||
| Amm | Bmm | Dmm | Emm | Fmm | Gmm | Kmm | Mmm | Rmm | Fmm | Amm | |||
| 3/4 | 4-3/4 | 1.14 | 31.75 | 22.61 | 19.05 | 45.97 | 60.96 | 115.06 | 69.85 | 105.41 | 20.57 | 6.35 | 1.524 |
| 7/8 | 38719 | 1.75 | 36.58 | 25.91 | 22.35 | 53.34 | 72.64 | 135.38 | 81.28 | 122.43 | 24.64 | 6.35 | 1.524 |
| 1 | 8-1/2 | 2.52 | 42.93 | 29.21 | 25.40 | 60.45 | 82.30 | 150.88 | 93.73 | 136.91 | 25.40 | 6.35 | 1.524 |
| 36899 | 39815 | 3.45 | 45.97 | 31.75 | 28.70 | 68.33 | 91.69 | 172.21 | 103.38 | 149.86 | 31.75 | 6.35 | 3.302 |
| 1-1/4 | 12 | 4.90 | 51.56 | 35.56 | 31.75 | 76.20 | 100.84 | 190.50 | 115.06 | 169.93 | 35.05 | 6.35 | 3.302 |
| 1-3/8 | 13-1/2 | 6.24 | 57.15 | 38.86 | 35.05 | 84.07 | 112.52 | 210.31 | 127.25 | 183.13 | 38.10 | 6.35 | 3.302 |
| 1-1/2 | 17 | 8.39 | 60.45 | 42.16 | 38.10 | 91.95 | 123.70 | 229.87 | 136.65 | 196.34 | 41.15 | 6.35 | 3.302 |
| 36954 | 25 | 14.24 | 73.15 | 51.82 | 44.45 | 106.43 | 147.83 | 278.64 | 162.05 | 236.98 | 53.85 | 6.35 | 3.302 |
| 2 | 35 | 21.21 | 82.55 | 58.42 | 53.34 | 127.00 | 173.23 | 323.60 | 184.15 | 264.41 | 59.94 | 6.35 | 3.302 |
| 37258 | 55 | 38.56 | 104.65 | 71.12 | 66.80 | 144.27 | 204.98 | 377.19 | 238.25 | 344.93 | 66.80 | 6.35 | 6.35 |
| 3 | 85 | 56.36 | 127.00 | 82.55 | 76.20 | 165.10 | 217.42 | 428.50 | 279.40 | 384.30 | 88.90 | 6.35 | 6.35 |
| 37623 | 120 | 133.35 | 95.25 | 91.95 | 203.20 | 482.60 | 6.35 | ||||||
獵鷹集團專注起重、船舶30年，源頭廠家批發供應，留下您的需求我們一對一服務！
美標D型卸扣分為G210和G2150兩種型號，主要區別在于橫栓上，一種是帶螺母的，一種是不帶的。符合CE認證，采用模鍛的加工工藝。該款類型卸扣主要功能以連接性為主，而弓形卸扣主要以吊裝功能為主，針對這個區別可以幫助我們選型。
